Single Shot Pulsed Laser |
|
 |
|
|
|
 |
|
Pulse Delay Time <5 µs
|
|
|
Highly reliable fiber-coupled laser diodes are incorporated into a home-built digital controller
|
|
|
By increasing the pulse delay time the single pulse energy can be brought to a mJ range
|
|
|
USB interface
|
|
|
Interlock Circuit
|
|
|
Usual Applications: LIBS, LIPS, Thermal or Plasma Ignition, Mass Spectrometry
|
| |
|
| |
|
Single Shot Pulsed Laser is a low-jitter, externally triggered, passively Q-switched diode-pumped solid-state SLM laser emitting pulsed radiation at the wavelength 1062.5 nm in a TEM00 beam. Single pulse energy up to 20 µJ is available for 2 ns pulses. The laser can be operated in a single shot mode as well as repetitively switched up to 100 Hz. *Beam waist is located 30±1 mm right the output flange.
| Specifications |
|
| Wavelength, nm | | 1062.5
|
|
|
|
| Pulse Energy, µJ | | 20
|
|
|
|
| Pulse Width (FWHM), ns | | 2
|
|
|
|
| Pulse Delay Time, µs | | <5
|
|
|
|
| Jitter (PtP), ns | | <±25
|
|
|
|
| Repetition Rate, Hz | | 1-100
|
|
|
|
| M2 | | <1.2
|
|
|
|
| Pulse Spectral Structure | | SLM
|
|
|
|
| Polarization Ratio | | 100:1
|
|
|
|
| Beam Waist Diameter* (1/e2), µm | | <30
|
|
|
|
| Pulse to Pulse Energy Stability RMS | | <1%
|
|
|
|
| Warm Up Time, min | | <10
|
|
|
|
| External Power Supply Voltage, V DC | | 5 -5%, +10%
|
|
|
|
| Operating Temperature, °C | | 15-40
|
|
|
|
| Interfaces | | USB, External Trigger (TTL, rising edge), 100 Hz max
|
|
|
|
| Dimensions | |
|
|
|
|
| Laser Head | | 25 (W) x 25 (H) x 75 (L)
|
|
|
|
| Stand Alone Controller | | 165 (W) x 50 (H) x 220 (L)
|
|
|
|
| Weight, g | |
|
|
|
|
| Laser Head | | 100
|
|
|
|
| Stand Alone Controller | | 1600
|
|
|
|
|
|
|
|
|
| |
|
|
 |
|
|
 |
|
|
|
|

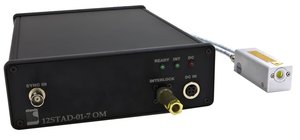

Single Shot Pulsed Laser
