UV Laser
STANDA UV Laser 354 / 266 nm
Cost effective 1062.5 nm / 1064 nm output wavelength

High output energy and peak power

High repetition rates up to 120 kHz

High beam quality (M2<1.1)

Sub nanosecond pulses (<1 ns)

High reliability and stability

Compact OEM design

Cost effective

More information: 1062 nm, 531 nm

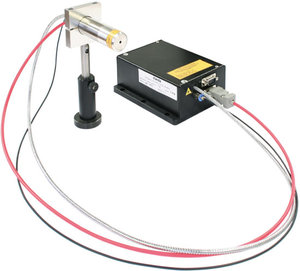

Sub nanosecond (<1 ns) single longitudinal mode passive DPSS Nd:LSB UV lasers available from Standa are able to provide output peak power up to 50 kW, high pulse repetition rates up to 120 kHz and excellent beam profile M2<1.2. This family of high reliable, DPSS lasers consists of a controller unit and a laser head. The controller unit includes a laser diode (LD) driver electronics, fiber pigtailed laser diode, and internal pulse generator. Built-in pulse generator can be replaced by external TTL triggering is a standard feature for all models.

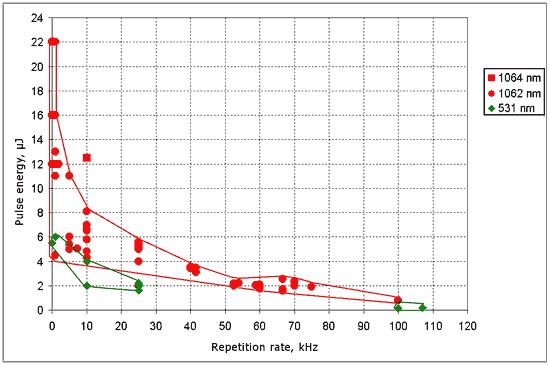

Easy to deploy and use our OEM laser system lets you to concentrate on experiment rather than waste time on the laser. Please check the image below to find the available OEM product ranges. Dots indicate already manufactured OEM lasers.

Models

STA-01-TH

STA-01-FH

Wavelength, nm

354

266

Average output power (max), mW

15

1

Pulse energy, µJ

>1.5

10

Pulse duration, ns

<0.5

<0.6

Repetition rate (max), kHz

10

0.1

Beam Profile

M2 < 1.2

Pulse spectral structure

                   single longitudinal mode



Polarization ratio

> 100:1

Beam Waist diameter
inside the laser head 1/e2, µm*

25-200

Pulse spectrum FWHM, pm

< 5 (near transform limited)

Pulse to pulse energy stability RMS

< 0.4

Power stability over six hours**

< ± 1,5%

External power supply voltage, V AC

100-240

Operatin temperature, °C

15 - 40

Interfaces

USB, External trigger (TTL rising edge) 1Hz...max repetition rate

Laser head dimensions:

  diameter, mm

30

  length, mm

120

Warranty

12 months or 5000 hours whichever occurs first

OEM Manufacturing services. Standa provides contract manufacturing services for application - specific Lasers. Please call your local Standa distributors or Standa office for more information.
