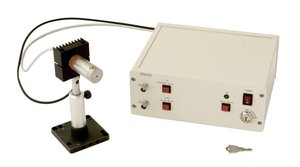

The Passive Q-Switched Laser STA-01-8-1047 is a sub-nanosecond passively Q-switched diode-pumped Nd:YLF microlaser operating at a wavelength of 1047 nm. The laser delivers more than 0.6mJ pulses with pulse duration below 500 ps and peak power exceeding 1MW in a TEM₀₀ beam. Please inquire regarding higher energy and shorter or longer pulse durations. Built-in frequency generator allows the STA-01-8-1047 to operate at repetition rates from single shot up to 100Hz, external TTL triggering is also standard option for this model. Laser output can be doubled (523nm) and tripled (349 nm) upon request.

Applications: materials processing, semiconductor inspection, LIBS, marking, nonlinear optics, biophotonics, micromachining

Specifications
Wavelength, nm			1047
Pulse energy, µJ			600
Average output power (max), mW			60
Pulse width (FWHM), ps			500
Repetition rate (max), Hz			100
Pulse to pulse energy stability (RMS), %			<0.5
Beam profile			TEM00, M2~1.25
Beam waist diameter inside the laser head 1/e2, µm			160
Pulse spectral structure			SLM
Spectral linewidth (FWHM), pm			<3.5
Polarization ratio			>100:1
Interfaces			USB, External trigger (TTL rising edge)1Hz...max repetition rate
External power supply voltage, V AC			100-240
Operating temperature, °C			15 - 40, non-condensing
Laser head dimensions, mm			Ø25x74
Controller dimensions, mm			223 (W) x 94 (H) x 197 (L)
