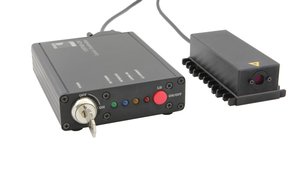

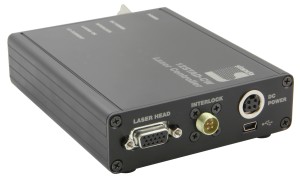

The STA-02-SH-CW Microchip Laser is a CW diode-pumped solid-state laser operating at the wavelength 532 nm. The laser head delivers 20 ± 1 mW of stable output power in a TEM₀₀ beam. Laser resonator does not contain moving parts; optimized laser diode (LD) beam shaping optics allows easy and reliable assembling. Standard laser system consists of 12STAD-CW digital controller and a laser head. Controller includes LD and TEC drivers, output power stabilization system, USB interface for ease of integration and remote control. JLV-SOFT9, universal laser control software with intuitive GUI, allows detailed setting and monitoring of key laser parameters along with writing them to an EEPROM located inside laser head. The last feature enables the interchangeability of laser head STA-02-SH-CW and 12STAD-CW controller. Several LEDs located at the front panel indicate DC power, laser diode enabling and stable output power. The 12STAD-CW is equipped with a Remote Interlock connector located at the back panel and the corresponding LED at the front panel indicating the Interlock status. Each unit is supplied with a shorting device installed in the interlock connector. Laser head output power can be set by Standa from 10 mW to 30 mW agreed with customer.

Specifications
Wavelength			532 nm
Linewidth			<0.1 nm
Output power			20 ± 1 mW
Power stability (8 hours, +/-2 °C)			<5 % PtP
Warm up time			<10 min
Spatial mode			TEM00
M2 factor			<1.2
Beam diameter (1/e2 point)			1.0 mm ± 10%
Far field divergence (full angle)			<1.5 mrad
Polarization ratio			>100:1, horizontal
Electrical & Mechanical
Operating voltage			4.75 – 5.5V DC
Operating Current			3 A (Maximum)
Modulation			No modulation offered
Dimensions
	Laser Head		104 x 58 x 33 mm
	Controller		124 x 104 x 34 mm
	Power supply		Optional
Laser head cable length			1 m
Laser head net weight			250 g
Controller net weight			350 g

OEM Manufacturing services. Standa provides contract manufacturing services for application - specific Lasers. Please call your local Standa distributors or Standa office for more information.
